Trimble Scorpion ASIC

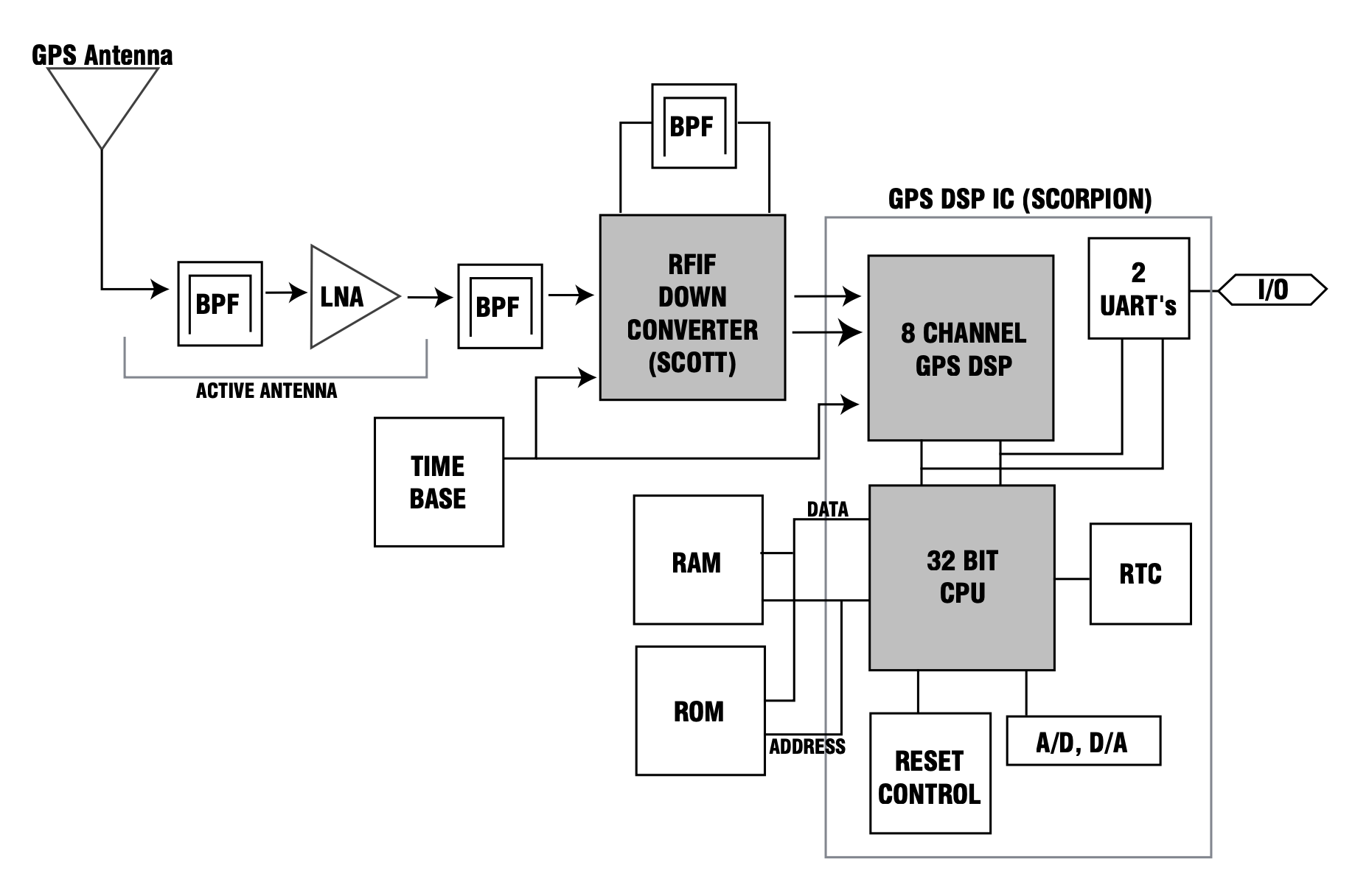

In conjunction with the Scott ASIC, the Scorpion RF ASIC is part of what would later be called the “Sierra” GPS chipset.
- 8-channel DSP with 4 correlators per channel
- 32 bit 68330 microprocessor
- 700mW@5v or 350mW@3.3v
- Real-time clock
- DUART
- 3.3 VDC low power operation
- 144 TQFP
Part Numbers
- 22857 (“SP4 only”)
- 40934

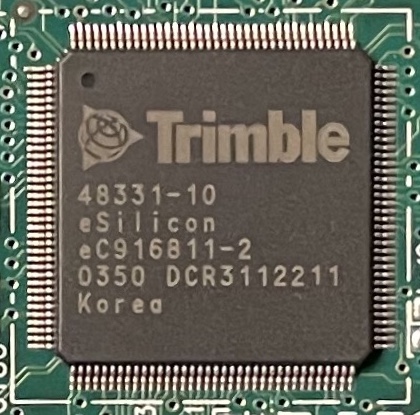

- 48331
Used In
- AgGPS 122
- ACE II
- ACE III
- BD112
- Lassen LP (40934)
- Lassen SK II
- Lassen SK8
- Placer 450
- Placer 455
- SVeeEight Plus
- Thunderbolt (22857)
